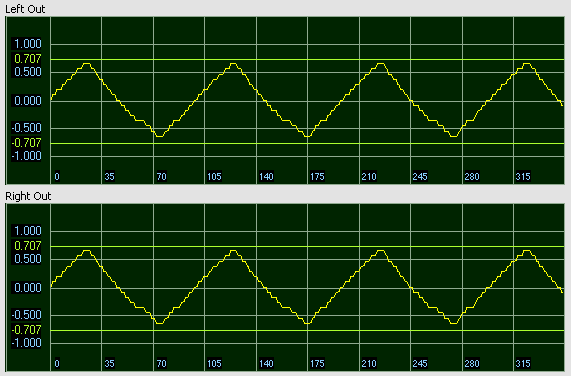

╟┐ ┌╢▐ ╠╪════════════: BitSynth: Controlled Quantization Synth :════════════╪╣▐ ╟┘ └╢▐ ║ BitSynth started out as an NES synth emulator but I decided ║▐ ║ to expand the capabilities. The user can choose how much ║▐ ║ quantization/resolution (1 to 8 bits) they want for the ║▐ ║ selectable waveforms. There are seven different waveforms ║▐ ║ made up of one to three oscillators, saw x3, square x3, ║▐ ║ saw/square/saw, triangle/square/triangle, ║▐ ║ triangle/square/triangle, hard-sync saw, and NES (similar ║▐ ║ to the triangle waveform produced by the old Ricoh 2A03 ║▐ ║ chip found in the Nintendo Entertainment System). Holding ║▐ ║ true to the original design, there is a switch to set ║▐ ║ synthesizer to a constant velocity, and I have added a ║▐ ║ switch to turn on a low-pass filter to get rid of some of ║▐ ║ the aliasing due to the sharp jumps of the quantized ║▐ ║ waveforms, but this also kills some of the quantization, so ║▐ ║ that's why it's optional. ║▐ ║ ║▐ ║ Additionally, a user can produce a few variations of white ║▐ ║ noise. The NES could produce 16 different noise ║▐ ║ frequencies, but this design narrows it down to four. The ║▐ ║ keys used to trigger the white noise can be moved around ║▐ ║ with a slider to set a position for where they are played ║▐ ║ on the keyboard, so if you want to play high frequencies ║▐ ║ with noise notes, the noise start can be set to a MIDI note ║▐ ║ of 40 or if you want the reverse, you can move the noise ║▐ ║ start up to somewhere around 80. The noise variances are ║▐ ║ created by filtering the white noise. The lowest noise is ║▐ ║ produced with a low-pass filter on the noise with a cutoff ║▐ ║ frequency of 1200 Hz. The two middle noise frequencies are ║▐ ║ produced with band-pass filters on the noise at 800 Hz and ║▐ ║ 3200 Hz. The highest noise frequency is produced with a ║▐ ║ high-pass filter on the noise starting at 3200 Hz. The ║▐ ║ noise volume can be adjusted with the Noise Osc slider. ║▐ ║ ║▐ ║ This project was created in RackAFX and tested in Ableton 9 ║▐ ║ Live. ║▐ ║ ║▐ ║ NES waveform with 3 bit quantization: ║▐ ║ ║▐ ║║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ ║▐ ║ Downloads ║▐ ║ ║▐ ║ dll file (VST compatible) ║▐
╟┐ ┌╢▐
