║ After two years of remotely running the Hardware Hacking ║▐
║ Village (HHV) Capture the Flag (CTF) competition due to ║▐
║ COVID-19, this was my first year back in Las Vegas, and an ║▐
║ opportunity to revamp the HHV CTF. I had learned a lot over ║▐
║ the past two years while creating remote-friendly CTF ║▐
║ challenges, and I was excited to apply those learning to ║▐
║ in-person content. ║▐
║ ║▐
║ Following the improvements of the previous years, the CTF ║▐
║ continued to be Jeopardy style competition over 2 days ║▐
║ (Friday and Saturday). The event was hosted on CTFd and ║▐
║ most of the challenges required interfacing with physical ║▐
║ hardware we had available in the HHV. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ I have enjoyed pushing the boundaries and applications of ║▐
║ the Shitty Add-On (SAO) standard since its conception; ║▐
║ while brainstorming challenge topics for DC30, I had an ║▐
║ idea to enhance the SAO feature in a new (and evil) way, ║▐
║ digital rights management (DRM). The goal was to create a ║▐
║ series of access control challenges that would prevent ║▐
║ add-ons from receiving power from an electronic conference ║▐
║ badge unless they passed various authentication checks. ║▐
║ ║▐

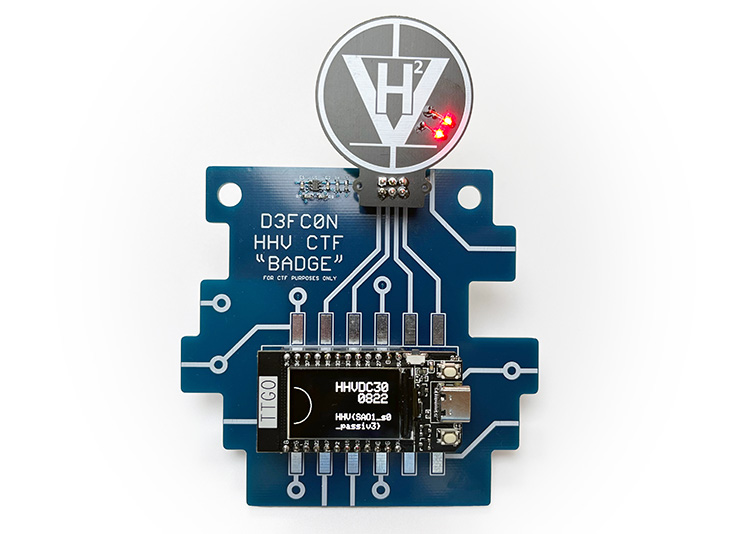

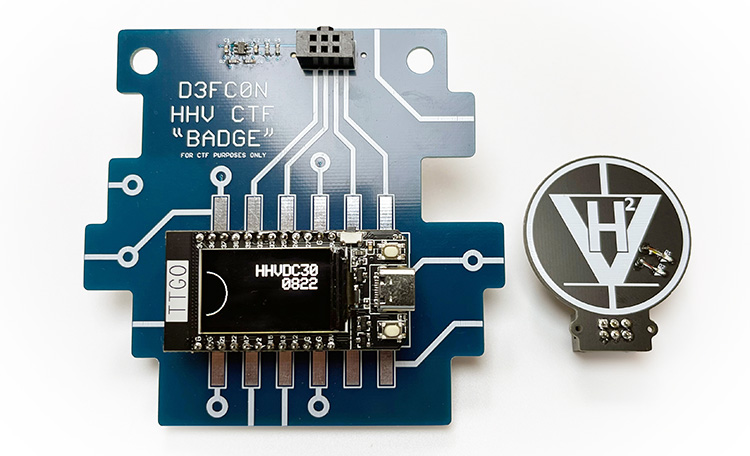

║ Enabling this new SAO feature was a 'custom MCU' called the ║▐
║ HHVDC30, designed specifically for controlling electronic ║▐
║ conference badges. ...Realistically, this was an ESP32 ║▐
║ module that was being disguised as new technology, and the ║▐
║ CTF electronic conference badge design further played up ║▐
║ the custom IC lore by artfully exposing leads for the chip ║▐
║ on the PCB. The display on the ESP32 module was used to ║▐
║ convey an orientation marker, IC name, and manufacturing ║▐
║ date on the default screen, and there was a custom ║▐
║ datasheet outlining the HHVDC30's pinouts and features. ║▐
║ ║▐
║ SAO power access was regulated by a load/power switch to ║▐
║ the 3V3 pin of the SAO header. Once an add-on was plugged ║▐
║ in, the badge would enable power to the SAO port for a ║▐
║ short period of time to check/request authentication from ║▐
║ an add-on, and if the authentication was successful, power ║▐
║ would remain enabled, otherwise, power would be disabled. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐

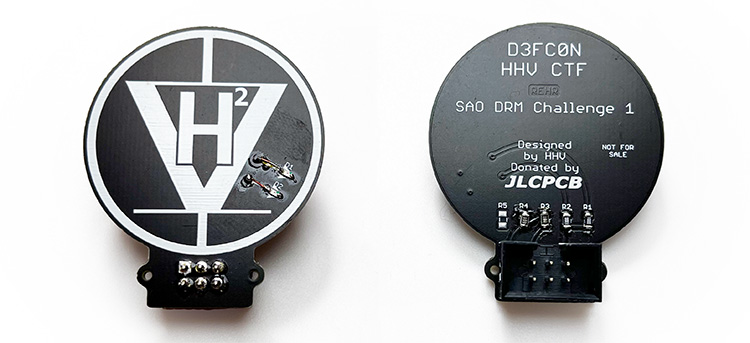

║ Only one add-on was completed in time for DEF CON 30, but ║▐
║ it supported two challenges. One challenge required ║▐
║ reworking the add-on to get the LEDs working, and the other ║▐
║ challenge required participants to reverse engineer the ║▐
║ analog authentication method. Each participant was given ║▐
║ their own add-on to hack on since I wanted participants to ║▐
║ be able to take away something from competing. Giveaways ║▐
║ always attract attention, and I couldn't think of an easier ║▐
║ way to get people to learn how to solder. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ In addition to the SAO DRM challenges, the custom ║▐
║ electronic conference badge featured a handful of hidden ║▐

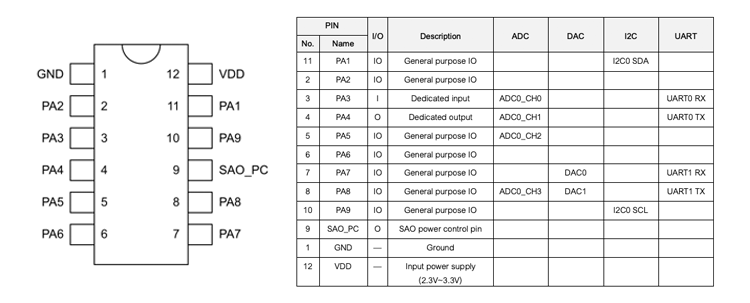

║ flags on various interfaces. As a hint to these interfaces, ║▐
║ the datasheet for the HHVDC30 had a table outlining the ║▐
║ capabilities for each pin. ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ ║▐
║ While I would have liked to have had more SAO DRM ║▐
║ challenges ready for DEF CON 30, I was still pleased with ║▐
║ the final CTF results. There was enough content to keep ║▐
║ contestants busy over the two days of the CTF, and the ║▐
║ difficulty of the of the challenges seemed balanced and ║▐
║ approachable given the number of first-time solderers I ║▐
║ witnessed and talked to! ║▐
║ ║▐
║ More details about the DC30 HHV CTF can be found on the DC ║▐
║ HHV challenge website, including a solutions write-up! ║▐
╟┐ ┌╢▐
╟┐ ┌╢▐
